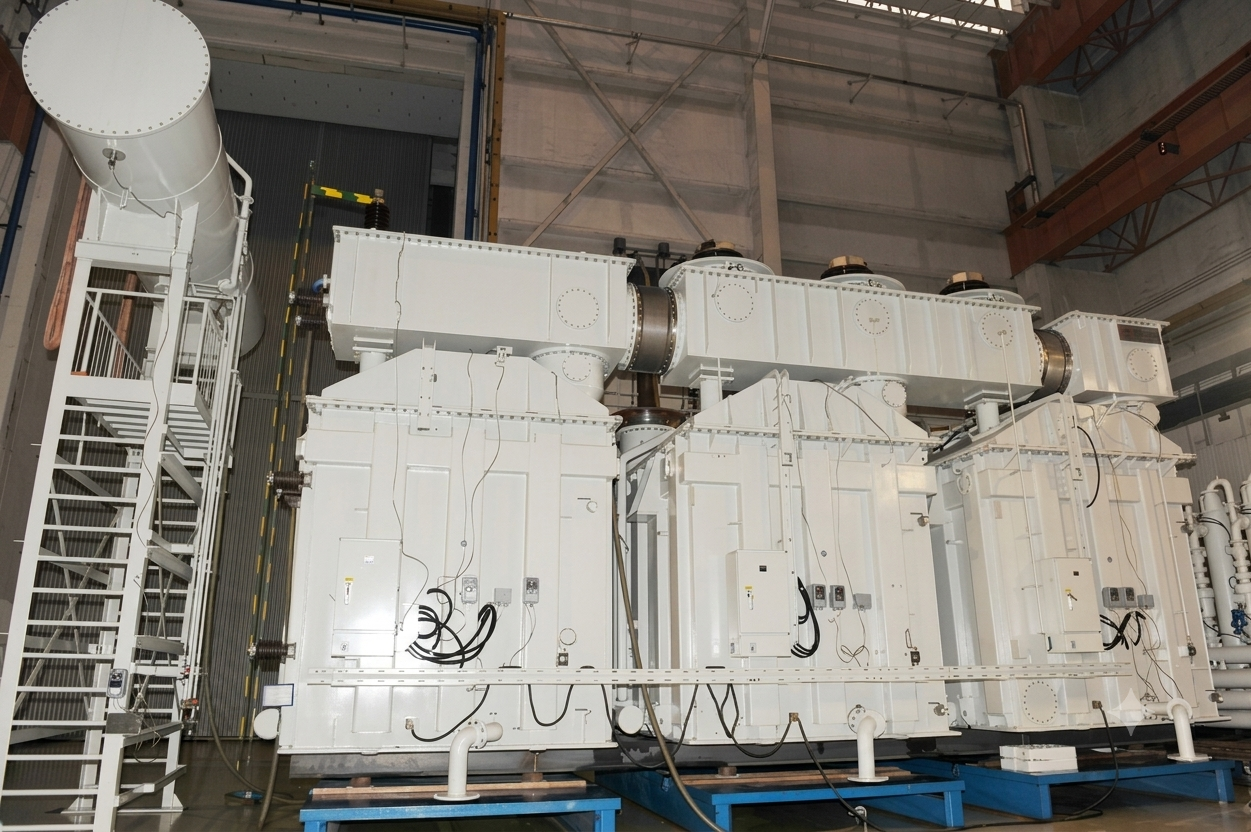

500 kV 860 MVA Water-cooled Main Power Transformer
The 500 kV 860 MVA water-cooled generator step-up transformer is designed for large-capacity power generation, extra-high voltage transmission, hydropower stations, and major grid connection projects. It is used to step up generator output voltage and deliver stable power to 500 kV transmission networks.
Description
Product Advantages
Large-capacity Power Generation Application
With a rated capacity of 860 MVA and a 500 kV voltage level, this transformer is suitable for large hydropower stations, power plants, and extra-high voltage grid connection projects.
Three-phase Combined Design
The three-phase combined structure supports large-capacity power transformation while improving overall system integration and project adaptability.
Efficient Water-cooled Performance
The water-cooled design provides effective heat dissipation, helping the transformer maintain stable temperature under continuous heavy-load operation.
Reliable Generator Step-up Function
It is designed to step up generator output voltage and deliver power efficiently to high-voltage transmission networks.
Extra-high Voltage Insulation System
The transformer is equipped with a reliable insulation structure suitable for 500 kV power systems and demanding grid operation.
Low Loss and Stable Operation
Optimized core and winding design helps reduce operating losses and improve long-term transmission efficiency.
Strong Mechanical Strength
The reinforced tank, winding support, and internal structure help withstand transportation, installation, short-circuit stress, and continuous operation.
Customizable Engineering Design
Capacity, voltage level, cooling method, impedance, vector group, insulation level, tap changer, accessories, and installation requirements can be customized according to project specifications.
Product Gallery
