Containerized 1500V PV Boost Inverter Station
The New Energy Integrated Transformer Station (Step-up & Inverter All-in-One Unit) is specifically designed for large-scale photovoltaic and wind power projects. It features deep integration of the transformer, intelligent high- and low-voltage switchgear, and the inverter system. Employing industry-leading "external radiator" natural ventilation technology, it completely eliminates the potential risks associated with fan failures. With a high protection rating of IP43/IP54 and state-of-the-art anti-corrosion treatment, this equipment is perfectly suited for harsh environments—such as deserts and coastal regions—helping you significantly reduce cabling and installation costs while enabling efficient, intelligent grid connection for new energy systems.
Description

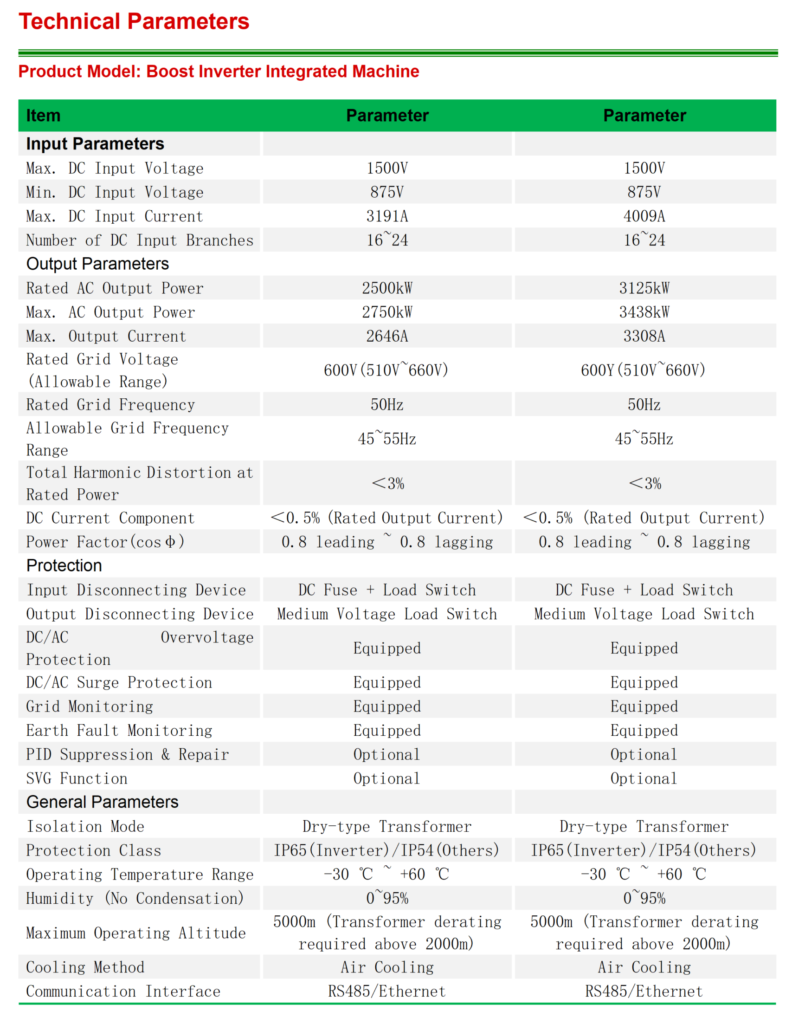

| Item | Parameter | Parameter |
| Input Parameters | ||
| Maximum DC Input Voltage | 1500V | 1500V |
| Minimum DC Input Voltage | 875V | 875V |
| Maximum Input Current | 3191A | 4009A |
| Number of DC Input Branches | 16-24 | 16-24 |
| Input Parameters | ||
| Rated AC Output Power | 2500kW | 3125kW |
| Maximum AC Output Power | 2750kW | 3438kW |
| Maximum Output Current | 2646A | 3308A |
| Rated Grid Voltage (Allowable Range) | 600V(510V~660V) | 600V(510V~660V) |
| Rated Grid Frequency | 50Hz | 50Hz |
| Allowable Grid Frequency Range | 45~55Hz | 45~55Hz |
| Total Harmonic Distortion Rate at Rated Power | <3% | <3% |
| DC Current Component | <0.5%(Rated Output Current) | <0.5%(Rated Output Current) |
| Power Factor (cosφ) | 0.8 Leading ~ 0.8 Lagging | 0.8 Leading ~ 0.8 Lagging |
| Protection | ||
| Input Side Disconnect Device | DC Fuse + Load Switch | DC Fuse + Load Switch |
| Output Side Disconnect Device | Medium Voltage Load Switch | Medium Voltage Load Switch |
| DC/AC Overvoltage Protection | Available | Available |
| DC/AC Overcurrent Protection | Available | Available |
| Grid Monitoring | Available | Available |
| Ground Fault Monitoring | Available | Available |
| PID Suppression and Repair | Optional | Optional |
| SVG Function | Optional | Optional |
| General Parameters | ||
| Isolation Method | Dry-Type Transformer | Dry-Type Transformer |
| Protection Level | IP65(Inverter)/IP54(Others) | IP65(Inverter)/IP54(Others) |
| Operating Temperature Range | -30 ℃~+60 ℃ | -30 ℃~+60 ℃ |
| Humidity (Non-Condensing) | 0~95% | 0~95% |
| Maximum Operating Altitude | 5000m(Transformer needs correction above 2000m) | 5000m(Transformer needs correction above 2000m) |
| Heat Dissipation Method | Air Cooling | Air Cooling |
| Communication Interface | RS485/Ethernet | RS485/Ethernet |
