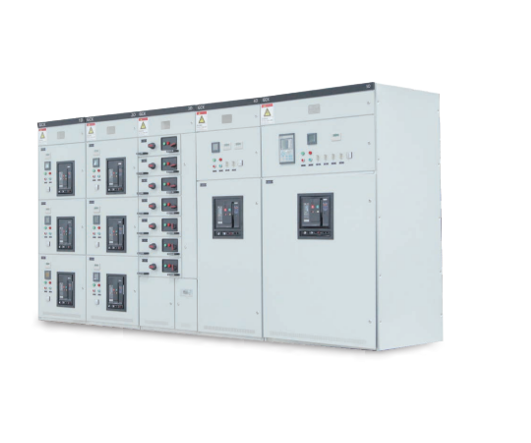

GCK Low-Voltage Draw-out Switchgear

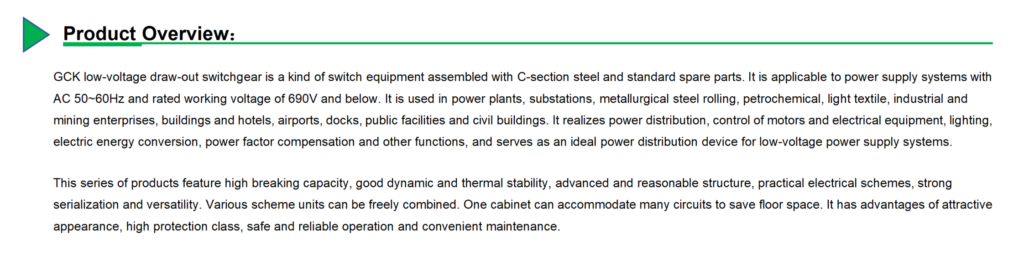

The GCK low-voltage withdrawable switchgear is a type of switchgear assembled from C-profiles and standard components. It is suitable for power supply systems operating at AC 50–60 Hz with a rated operating voltage of 690 V or below. It is utilized in power plants, substations, metallurgical rolling mills, petrochemical facilities, light industry and textile plants, industrial and mining enterprises, office buildings and hotels, airports and terminals, public utilities, and civil structures to perform functions such as power distribution, control of motors and electrical equipment, lighting control, energy conversion, and power factor compensation; it serves as an ideal power distribution device for low-voltage power supply systems.
Description

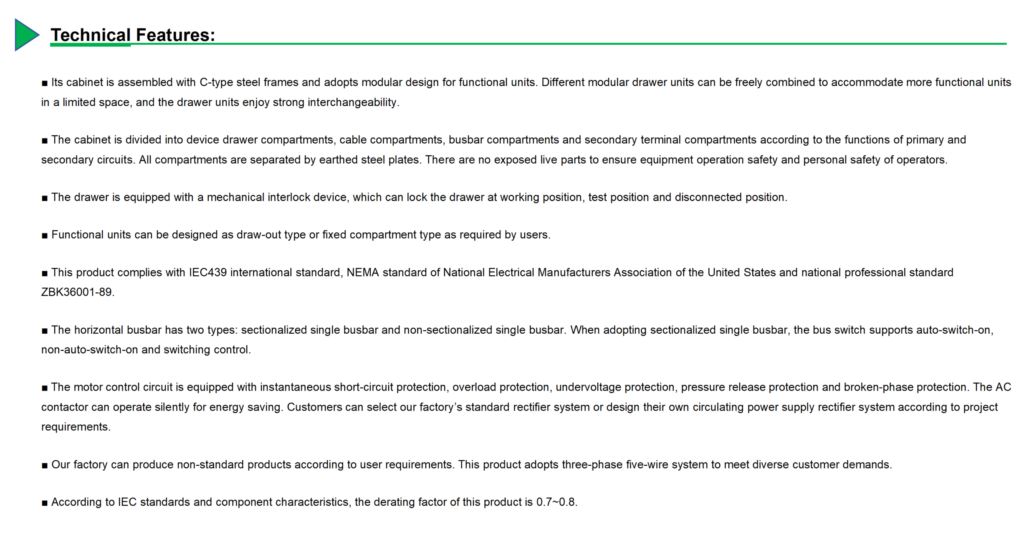

Core Product Advantages
-
- Global Standard Compliance: Fully meets IEC 61439, NEMA, and international low-voltage electrical assembly standards.
- Modular C-Shape Frame: Engineered with a rigid C-profile frame supporting interchangeable drawer modules for easy customization.
- High Breaking Capacity: Delivers heavy-duty thermal and dynamic stability with reliable busbar sectionalizing controls.
- Ultimate Operational Safety: Isolated compartments with grounded steel plates and robust mechanical interlocks protect personnel.
- Space-Saving Layout: Accommodates high-density circuits within a compact, aesthetically optimized enclosure to reduce footprint.
- Intelligent Motor Protection: Integrated MCC control modules offer short-circuit, overload, under-voltage, and phase-loss protection.

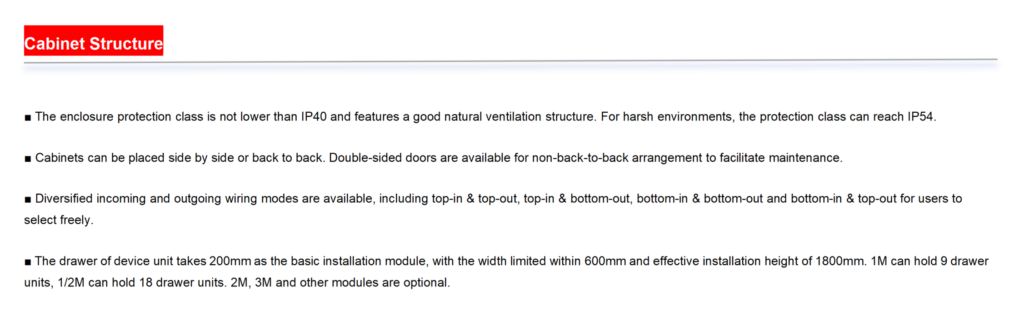

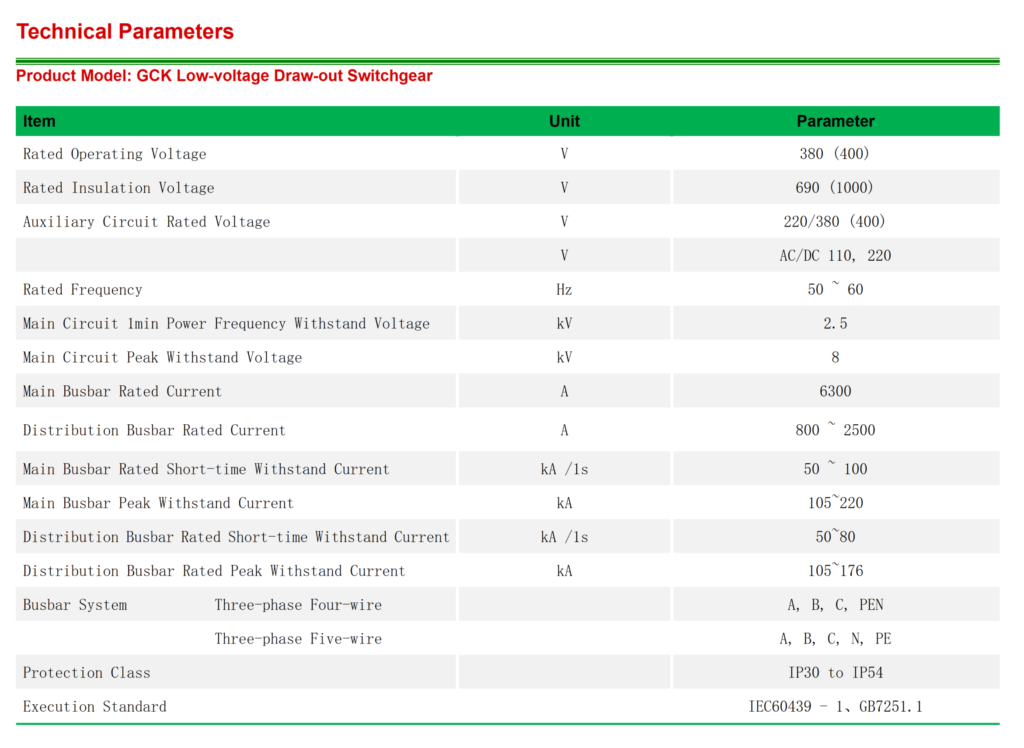

Technical Parameters
Product Model: GCK Low-Voltage Draw-out Switchgear
| Item | Unit | Parameter |
| Rated Operating Voltage | V | 380 (400) |
| Rated Insulation Voltage | V | 690 (1000) |
| Rated Voltage of Auxiliary Circuit | V | 220/380 (400) |
| V | AC/DC 110, 220 | |
| Rated Frequency | Hz | 50 ~ 60 |
| 1min Power Frequency Withstand Voltage (Main Circuit) | kV | 2.5 |
| Peak Withstand Voltage (Main Circuit) | kV | 8 |
| Rated Current of Main Busbar | A | 6300 |
| Rated Current of Distribution Busbar | A | 800 ~ 2500 |
| Rated Short-Time Withstand Current (Main Busbar) | kA/1s | 50 ~ 100 |
| Rated Peak Withstand Current (Main Busbar) | kA | 105 ~ 220 |
| Rated Short-Time Withstand Current (Distribution Busbar) | kA/1s | 50 ~ 80 |
| Rated Peak Withstand Current (Distribution Busbar) | kA | 105 ~ 176 |
| Busbar System: Three-Phase Four-Wire | – | A, B, C, PEN |
| Busbar System: Three-Phase Five-Wire | – | A, B, C, N, PE |
| Protection Level | – | IP30 to IP54 |
| Executive Standard | – | IEC60439-1, GB7251.1 |
