KYN28A-24 Armored Removable AC Metal- Enclosed Switchgear

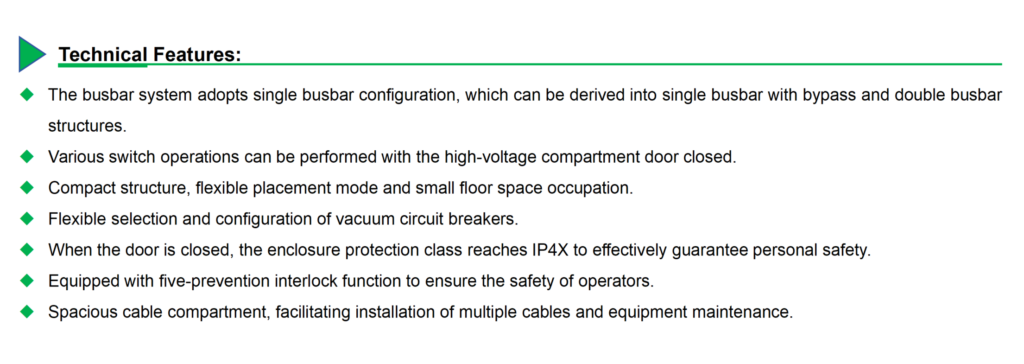

The busbar system features a single-bus configuration, which can be adapted to single-bus-with-bypass or double-bus structures. It enables the execution of various switching operations while the high-voltage compartment door remains closed. It features a compact structure and flexible layout options, thereby minimizing floor space requirements. With the door closed, the enclosure achieves an IP4X protection rating, effectively ensuring personnel safety. It incorporates a "Five-Prevention" interlocking mechanism to safeguard the operating personnel. The cable compartment offers ample space, facilitating the installation of multiple cables as well as equipment maintenance. It offers flexible options for the selection of vacuum circuit breakers.
Description

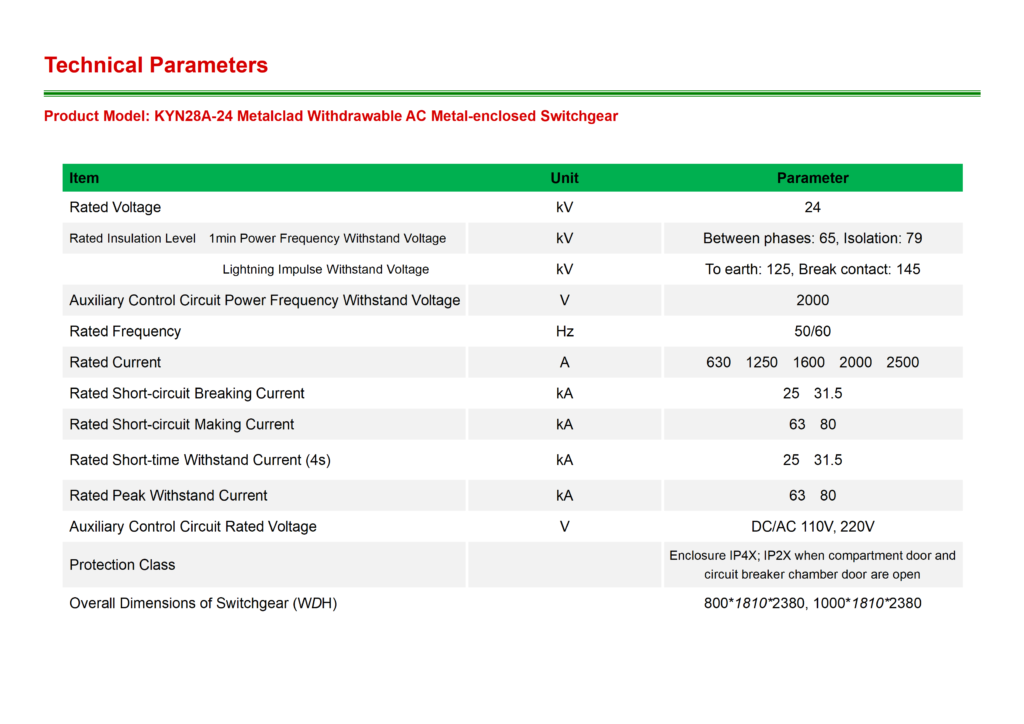

Technical Parameters
Product Model: KYN28A-24 Armored Withdrawable AC Metal-Enclosed Switchgear
| project | unit | parameter |
| Rated Voltage | kV | 24 |
| Rated Insulation Level: 1-Minute Power-Frequency Withstand Voltage | kV | alternate 65 separate 79 |
| Lightning Impulse Withstand Voltage | kV | Relatively 125 Fracture Surface 145 |
| Power-Frequency Withstand Voltage of Auxiliary Control Circuits | V | 2000 |
| Rated Frequency | Hz | 50/60 |
| Rated Current | A | 630 1250 1600 2000 2500 |
| Rated Short-Circuit Breaking Current | kA | 25 31.5 |
| Rated Short-Circuit Making Current | kA | 63 80 |
| Rated Short-Time Withstand Current (4s) | kA | 25 31.5 |
| Rated Peak Withstand Current | kA | 63 80 |
| Auxiliary Control Circuit Rated Voltage | V | DC/AC 110V,220V |
| Protection Class | Enclosure rating: IP4X; IP2X when the compartment door or circuit breaker compartment door is open. | |
| Switchgear Dimensions (Width × Depth × Height) | 800*1810*2380, 1000*1810*2380 |
