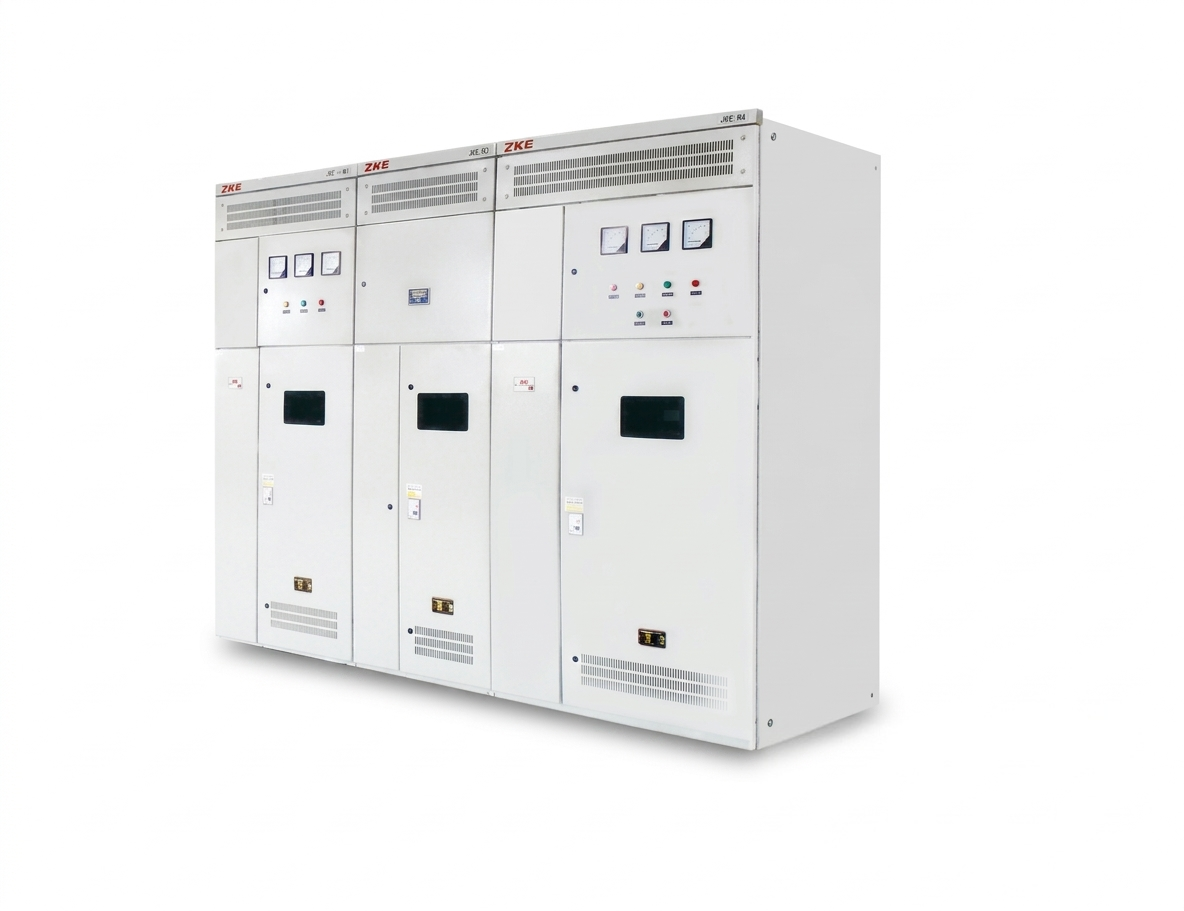

TSC Type Dynamic Reactive Power Compensation Device
The TSC Dynamic Reactive Power Compensation Device is a high-performance, thyristor-based system for power distribution networks. Utilizing fully digital intelligent control, it monitors the grid in real time to enable rapid, automatic, and inrush-free switching of capacitor banks. Featuring no mechanical moving parts and generating no additional harmonics, the system effectively maintains a high power factor, enhances voltage quality, and reduces line losses. It is custom-tailored for modern industrial facilities and substations with highly fluctuating loads.
Description

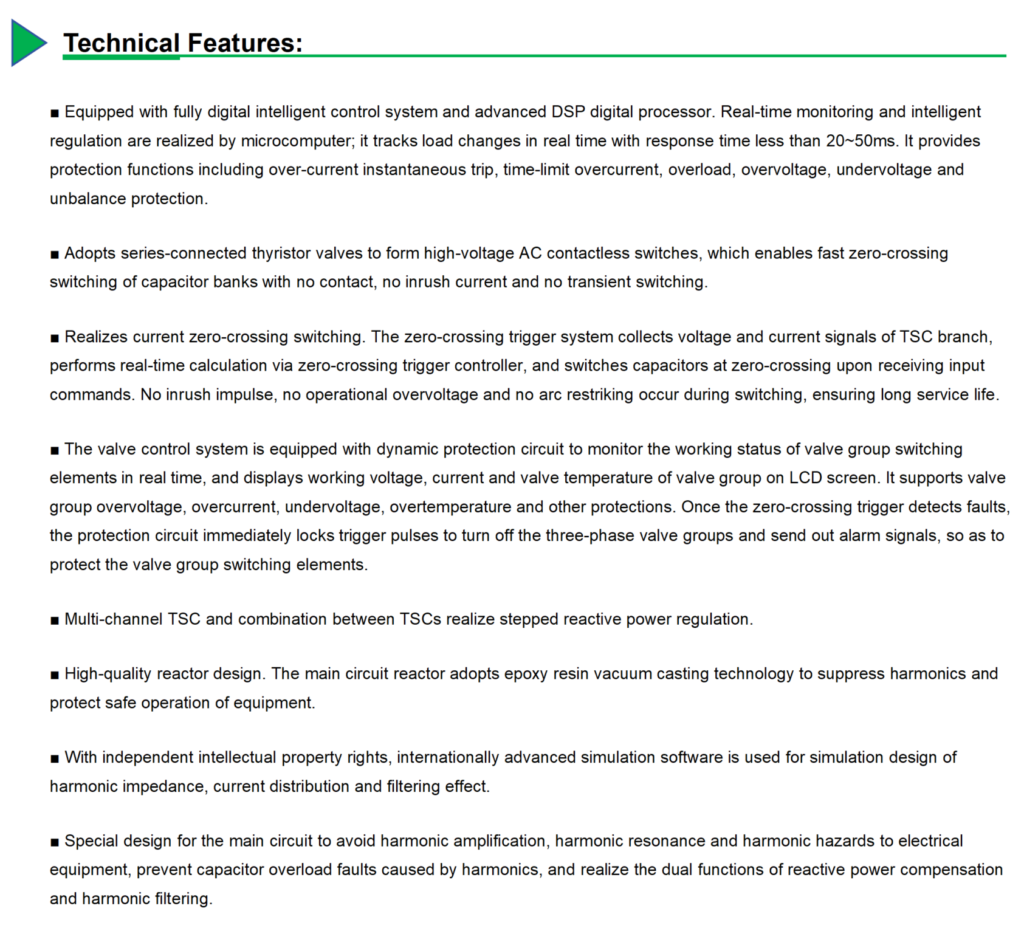

Product Technical Advantages
1. Surge-Free, Flexible Switching: Employs advanced Thyristor zero-crossing trigger technology to ensure capacitor banks are switched into the circuit precisely when the grid voltage equals the capacitor’s residual voltage (achieving zero voltage differential). This completely eliminates the mechanical arcing and severe transient inrush currents typically associated with traditional contactor-based switching.
2. Non-Mechanical, Instantaneous Response:Features a fully electronic semiconductor switching system that completely dispenses with traditional mechanical contact mechanisms. Its dynamic response time is extremely fast (typically less than 20ms), making it ideally suited for industrial load scenarios characterized by severe fluctuations—such as welding equipment, cranes, and large-scale electric motors.
3. Low Loss & Harmonic Suppression: The capacitors are connected in series with anti-harmonic reactors of a specific transformation ratio. While providing stable reactive power compensation, this configuration effectively suppresses and absorbs certain high-order harmonics present in the power grid, thereby safeguarding the electrical integrity of both the device itself and the entire feeder line.
4. Long-Life, Maintenance-Free Design: By eliminating mechanical contacts—which are prone to damage from arc erosion—the equipment not only operates with extremely low noise levels but also significantly reduces the frequency of routine maintenance and operations, thereby substantially extending the service life of the valuable power capacitors.
5. Digitalized Power Distribution Management:Equipped with a high-precision LCD monitoring screen for comprehensive power quality analysis, the system integrates multiple industrial communication interfaces and network protocols. It supports real-time data reporting, audible and visual fault alarms, and fully automated, unattended digital operational management.

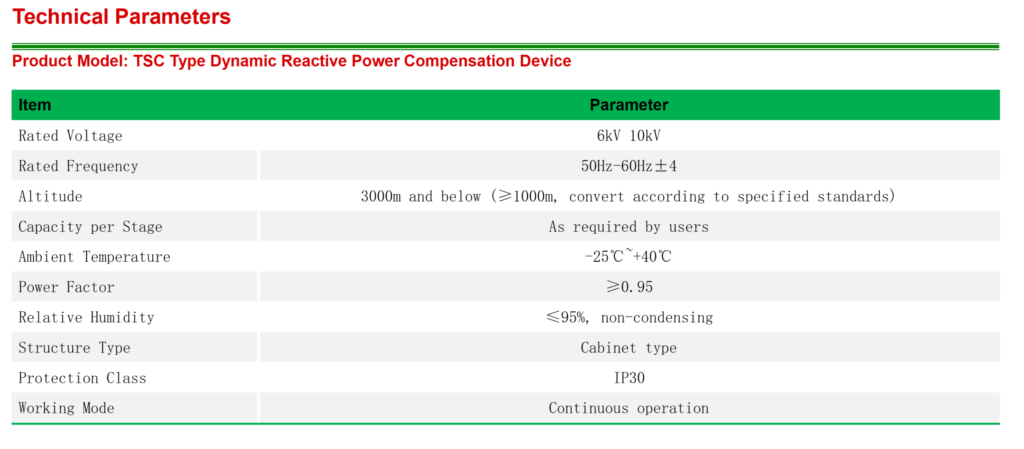

Technical Parameters
Product Model: TSC Type Dynamic Reactive Power Compensation Device
